Modern vehicle climate control systems can utilize automated afterblow routines to dry the evaporator core after engine shutdown. By running the blower motor at a low speed based on climate sensors, this technology lowers relative humidity within the HVAC housing below the threshold for mold growth, preventing common cabin odors.
How Automated Sensor Drying Stops HVAC Mold Odors Before They Start
Automated afterblow systems utilize climate sensors and targeted fan cycles to dry the vehicle’s evaporator core after engine shutdown. This process drops internal relative humidity inside the HVAC housing below the threshold required for fungal growth, completely preventing the sour odors common to vehicles driven in humid, river-adjacent environments.
Why Standing Water Inside Dark Climate Boxes Triggers Sour Passenger Cabin Air
As liquid refrigerant expands within the aluminum coils of the evaporator core, the metal drops near freezing. The blower fan forces warm cabin air across these frozen fins, transferring heat to the refrigerant and causing gaseous moisture to condense into liquid water droplets on the core’s surface.
Normally, this water drains beneath the chassis via a rubber tube. However, modern compact HVAC housings enclose the core inside a dark, airtight plastic plenum box directly behind the dashboard.
When the engine shuts down, active airflow drops to zero instantly. The cold, saturated aluminum core sits trapped inside a warm, unventilated chamber. This combination of standing moisture, elevated ambient engine heat, and total darkness creates an ideal microclimate for bacterial colonization. Within hours, trapped mold spores and bacteria replicate on the damp fins, forming a biological film that emits volatile organic compounds directly into the cabin upon the next startup.
Why Pocket District Commuters Suffer the Worst Summer AC Mildew Outbreaks
Vehicles in Sacramento’s Pocket-Greenhaven neighborhood face a distinct microclimate that accelerates bacterial colonization. While the Central Valley experiences dry daytime heat exceeding 100°F, this district is bounded on three sides by the Sacramento River, creating a localized evening humidity pocket near Rush River Drive and Windbridge Drive.
During a commute south down Interstate 5, the AC system runs at maximum capacity, saturating the evaporator core. When parked in a river-adjacent garage or driveway, high external humidity prevents this trapped moisture from evaporating. The vehicle acts as an incubator, sealing engine bay heat with river humidity, forcing the core to stay wet and accelerate fungal growth faster than in drier regions.
Deploying Automated Climate Logic to Dry Saturated Aluminum Fin Elements Remotely
To interrupt this biological cycle, our technicians utilize your climate control module’s software logic to alter the vehicle’s shutdown sequence. Upon ignition off, the climate computer enters a low-power standby mode to evaluate three real-time inputs:
- Ambient Temperature: Verifies exterior temperatures exceeded a calibrated threshold, typically 70°F.
- Compressor Runtime: Confirms continuous operation achieved full core saturation.
- Voltage Safety: Ensures the starting battery maintains a state of charge greater than 80%.
If parameters match, the module waits 30 minutes for core frost to melt into liquid form. The module then sends a low-voltage pulse to the blower motor controller, activating the cabin fan at 15% to 20% capacity. This low-velocity airflow clears moisture through the drain line over 5 to 10 minutes without waking the primary engine control unit (ECU), preserving system sleep cycles.
Why Safe Voltage Boundaries Protect Critical Automotive Amperage Limits Automatically
Running a high-amperage blower motor while the alternator is stationary risks depleting the 12V starting battery. To prevent this, modern vehicles use a closed-loop current sensing architecture. A battery monitoring sensor on the negative terminal tracks real-time state of charge (SoC) and voltage drop, instantly blocking or terminating the afterblow cycle if voltage falls below a hard-coded limit—typically 12.1 V for standard AGM batteries.
Additionally, the system utilizes pulse-width modulation (PWM) to cycle the blower motor’s ground path rapidly. This reduces the total current draw to under 5 amperes. This brief run consumes less than 1% of the total battery reserve, a negligible amount replaced within the first two minutes of the next engine start sequence.
Our Multi Stage Decontamination Method for Restoring Sterile Air Distribution Channels
When an auto AC system develops a severe mold odor, simply enabling the afterblow software will not resolve the issue. The existing biological film creates a hydrophobic layer on the aluminum fins that retains water and resists basic airflow drying. Remediation requires our Multi Stage Decontamination professional intervention.
Our Chemical Disinfection Protocol
We access your HVAC housing through the cabin filter or evaporator drain port and inject a high-pressure chemical foam directly onto the core. This cleaner expands between the aluminum fins, dissolving the organic slime layer and killing mold colonies at a molecular level before flushing out the drain line.
Our Diagnostic Verdict
We isolate the critical point of failure when our electronic humidity probe reveals that moisture remains trapped at 95% inside the HVAC box long after engine shutdown. This confirms a failed cabin temperature sensor or a disabled software flag is preventing your vehicle’s automated drying cycle from deploying.
Software Realignment and Calibration

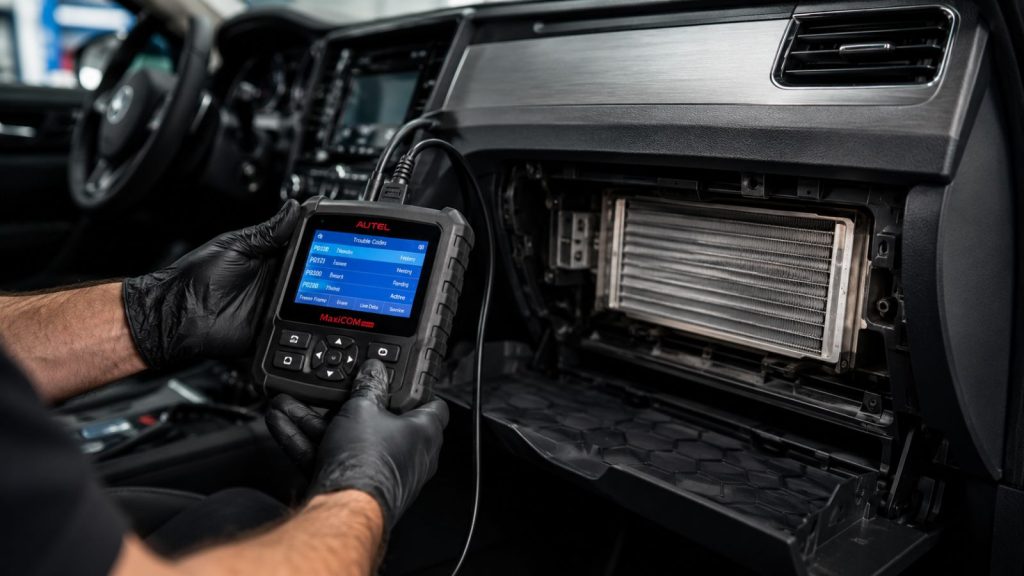

Post-cleaning, we connect an advanced diagnostic scan tool to your vehicle’s OBD-II port. Because many manufacturers ship vehicles with afterblow disabled to save nominal battery life, we navigate directly to your body control module, toggle the function to ‘Active,’ and flash the new adaptation values to the non-volatile memory.
| Our Verification Step | Tool Used | Target Metric |
| Voltage Drop Verification | Digital Multimeter / Scan Tool | Current draw under 5A, voltage stable above 12.2V |
| Airflow Turnover Check | Digital Anemometer | Continuous air movement at the central register vents |
| Moisture Clearance Proof | Internal Borescope | Fins clear of standing water droplets at cycle termination |
Eliminate HVAC Mold Odors at the Source
Masking a sour AC stench with retail aerosol sprays does not kill the bacteria replicating on your evaporator core.
Bring your vehicle to Prestige Auto Works at 33 Massie Ct, Sacramento, CA 95823. Our technicians will chemically decontaminate the HVAC plenum box, clear the physical drainage pathways, and reprogram your factory climate control module to run active afterblow drying cycles. Restoratively fix your air conditioning system today.
FAQs
Can this automated afterblow drying system be activated on a vehicle if it was not enabled from the factory?
Yes. Many modern domestic and import vehicles possess this native software logic already embedded within their existing climate control modules. A technician can access the system configuration using a factory-level diagnostic computer and change the afterblow parameter from disabled to active.
Will running an automated evaporator core drying cycle drain the vehicle battery and leave me stranded?
No. The climate module monitors battery state-of-charge through a closed-loop current sensor. If the starting battery voltage drops below a safe operational threshold (typically 12.1V), the vehicle’s power management system instantly terminates the drying cycle to preserve primary engine-starting power.
Are retail aerosol odor sprays ineffective at permanently eliminating a sour air conditioning stench?
Yes. Over-the-counter aerosol sprays and charcoal scent bombs only temporarily mask cabin odors by introducing perfumes into the intake vents. They do not remove or dissolve the physical mold and bacterial colonies growing directly on the wet surfaces of the aluminum evaporator fins.
Does the automated afterblow system create disruptive noise while operating in a parked car?
No. The system utilizes pulse-width modulation to run the internal blower fan at its lowest operational speed setting, drawing less than 5 amperes of current. The resulting noise is a faint, low-velocity air whir that remains completely imperceptible from outside the locked vehicle.
